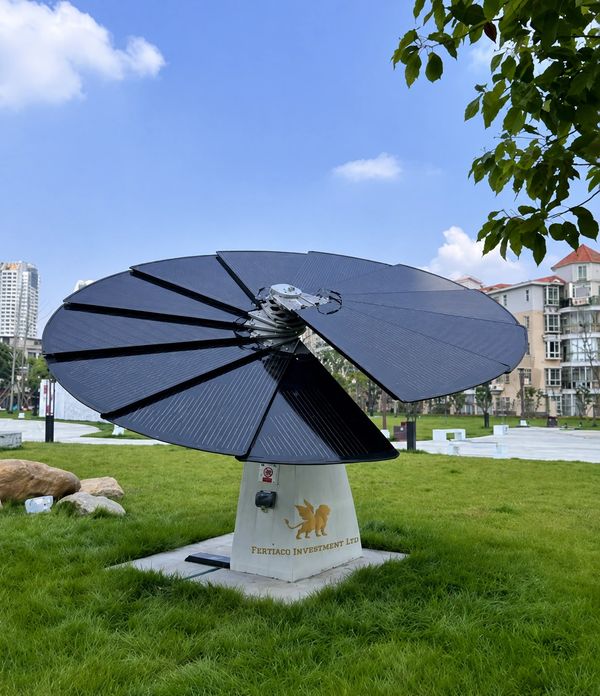

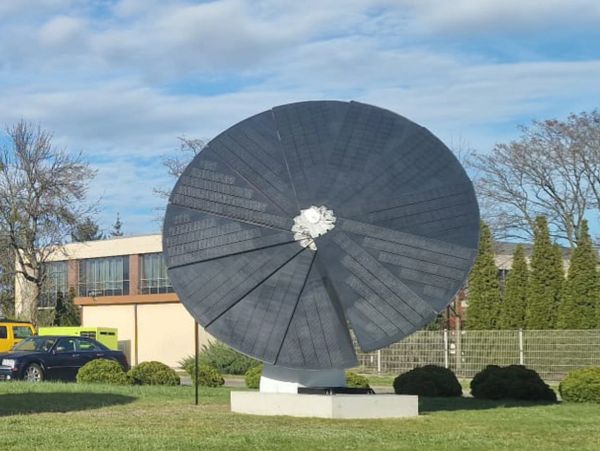

Solar Sunflower - Smart flower

Model: ZHCD-GD
Total Module Power: 2.4KW ±5%
Daily Power Generation: 10–12 KWh
Net Weight: 535.85 KG
Maximum Dimensions: 4806 × 4299 mm
Tracking System: Fixed Type (No Folding)
Output Voltage: 110–220V
Module Efficiency: ≥90% within 10 years
Service Life: ≥20 Years
Hail Resistance: 25 mm / 23 m/s
Operating Temperature: -20°C to 65°C
Wind Resistance: Level 8 Wind / 20.7 m/s
Waterproof Rating: IP55
Installation: Anchor Bolts or Concrete Foundation
Testing Standard: STC: 1000W/m², 25°C, AM1.5
Container Capacity: 20GP: 4 Sets / 40GP: 8 Sets
CIF Price: €6,305

Model: ZHCD-GD
Total Module Power: 2.4KW ±5%
Daily Power Generation: 10–12 KWh
Net Weight: 535.85 KG
Maximum Dimensions: 4800 × 4300 × 4300 mm
Tracking System: Chengdian PLC Tracking Module
Tracking Method: Single-axis Automatic Horizontal Tracking
Output Voltage: 110–220V
Module Efficiency: ≥90% within 10 years
Service Life: ≥20 Years
Hail Resistance: 25 mm / 23 m/s
Operating Temperature: -20°C to 65°C
Wind Resistance: Level 8 Wind / 20.7 m/s
Waterproof Rating: IP55
Installation: Anchor Bolts or Concrete Foundation
Container Capacity: 20GP: 4 Sets / 40GP: 8 Sets
CIF Price: €8,814



Model: ZHCD-GZB
Total Module Power: 2.4KW ±5%
Daily Power Generation: 13–15 KWh
Net Weight: 535.85 KG
Maximum Dimensions: 4800 × 4300 × 4300 mm
Tracking System: Chengdian PLC Tracking Module
Tracking Method: Dual-axis Horizontal & Tilt Tracking
Output Voltage: 110–220V
Module Efficiency: ≥90% within 10 years
Service Life: ≥20 Years
Hail Resistance: 25 mm / 23 m/s
Operating Temperature: -20°C to 65°C
Wind Resistance: Level 8 Wind / 20.7 m/s
Waterproof Rating: IP55
Installation: Anchor Bolts or Concrete Foundation
Container Capacity: 20GP: 2 Sets / 40GP: 5 Sets / 40HQ: 7 Sets
CIF Price: €10,816



Model: ZHCD-GZS
Total Module Power: 1.45KW ±5%
Daily Power Generation: 7–9 KWh
Net Weight: 650 KG
Maximum Dimensions: 4000 × 4000 × 4000 mm
Tracking System: Chengdian PLC Tracking Module
Tracking Method: Triple-axis Automatic Horizontal & Vertical Tracking
Folding System: Supported
Output Voltage: 110–220V
Module Efficiency: ≥90% within 10 years
Service Life: ≥20 Years
Hail Resistance: 25 mm / 23 m/s
Operating Temperature: -20°C to 65°C
Wind Resistance: Level 12 Wind / 32.7 m/s
Waterproof Rating: IP55
Installation: Anchor Bolts or Concrete Foundation
Container Capacity: 20GP: 8 Sets / 40GP: 16 Sets
CIF Price: €12,779

Model: ZHCD-GZS
Total Module Power: 2.6KW ±5%
Daily Power Generation: 14.4–18 KWh
Net Weight: 793.4 KG
Maximum Dimensions: 5000 × 5000 × 5000 mm
Tracking System: Chengdian PLC Tracking Module
Tracking Method: Triple-axis Automatic Horizontal & Vertical Tracking
Folding System: Supported
Output Voltage: 110–220V
Module Efficiency: ≥90% within 10 years
Service Life: ≥20 Years
Hail Resistance: 25 mm / 23 m/s
Operating Temperature: -20°C to 65°C
Wind Resistance: Level 12 Wind / 32.7 m/s
Waterproof Rating: IP55
Installation: Anchor Bolts or Concrete Foundation
Container Capacity: 20GP: 2 Sets / 40GP: 4 Sets
CIF Price: €15,028



OPTIONAL ACCESSORIES

LFP Battery 10KWh – €1,274
LFP Battery 5KWh – €2,499.90
Grid-Tie Inverter 3KW – €520
Off-Grid Inverter 5.5KW – €761.80

COMMERCIAL TERMS

Pricing Term: CIF Limassol, Malta, Greece, Libanon, Italy Port, Cyprus

For other port and country delivery please contact via email to requested official price.
Delivery Time: 35 Days
Payment Terms: 50% Advance, Balance Before Delivery
Offer Validity: 7 Days
Warranty: 1 Year Machine Warranty + 10-Year 90% Power Output Warranty

Source: Solar Flower Product & Pricing Sheet
